Specifications

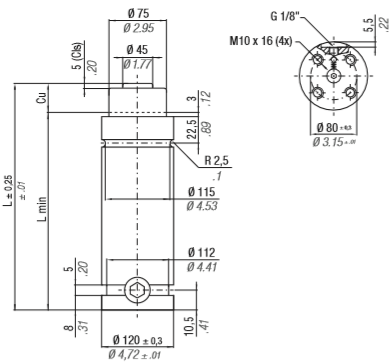

The listed diameters are in mm in fully flat position.

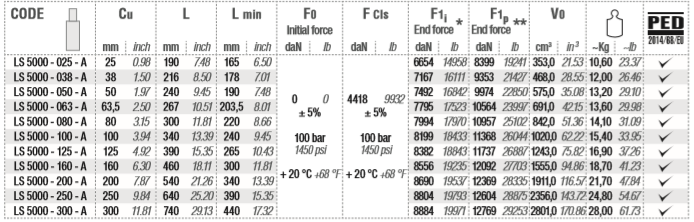

| SKU | LS 5000 - 200 - A |
|---|---|
| Price Group | NV |
| prognosed delivery time | in consultation |
| F1p Ib | 28,335.00 |
| Outside Ø in inches | 4.72 |
| Outside Ø in mm | 120 |
| Ib | 9,932.00 |
| ~Kg | 21.70 |
| Vo cm^{3} | 1,911.00 |
| F1i daN | 8,690.00 |
| L min | 340.00 |
| F1p daN | 12,369.00 |
| F1i Ib | 19,537.00 |
| daN | 4,418.00 |
| Stroke | 200.00 |
| L | 540.00 |
