Wave springs
Sinus springs Precision sine springs are available in many different sizes. They are made of high-quality material in accordance with standard SAE 1075 or DIN 17222 (Ck 75) Wnr 1.1248. They are burr-free and are dimensioned in such a way that they spring back completely into their original position after complete flattening. Sine springs are used for a relatively light load, including between ball bearings, usually to eliminate axial end play.

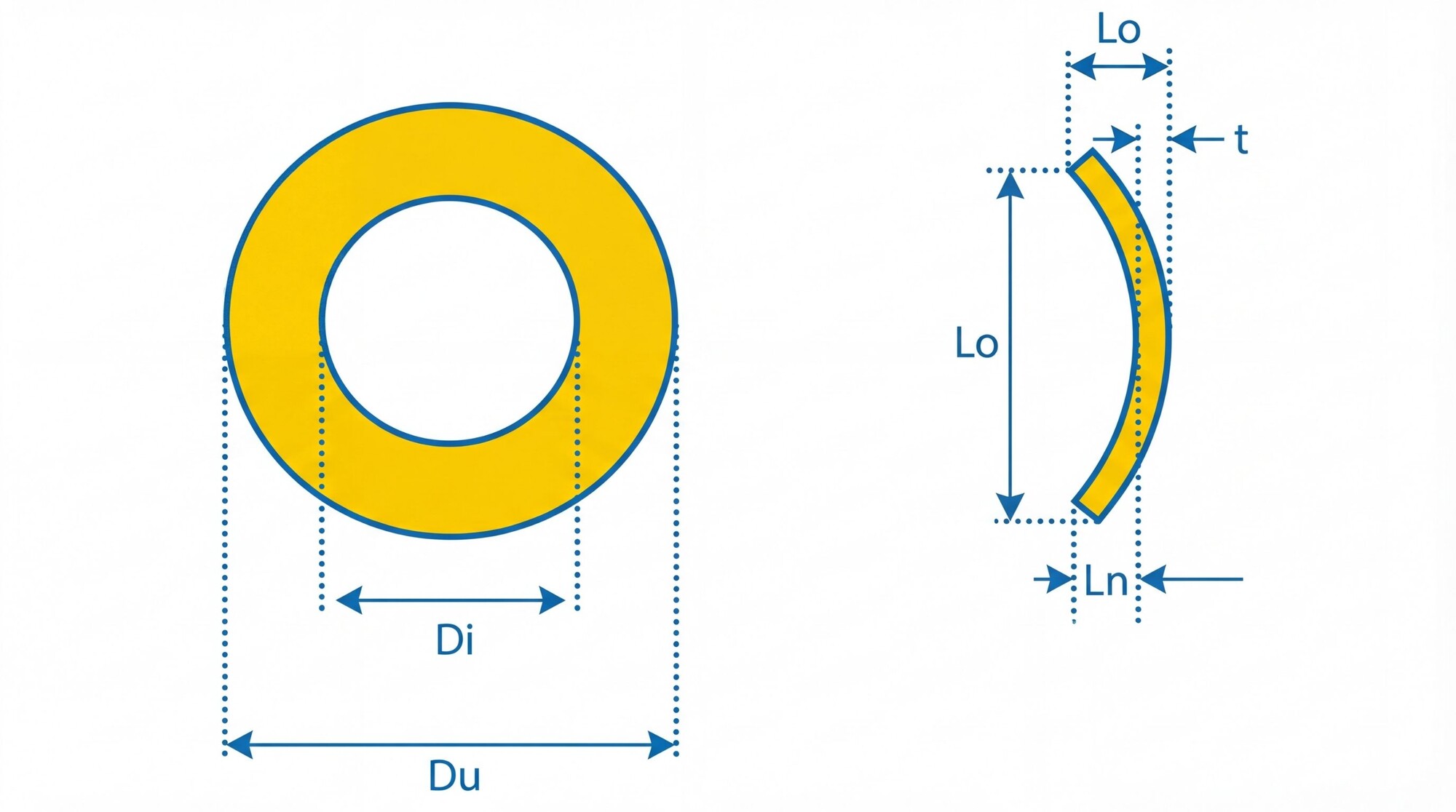

Product measurements Open Legend
t Thickness
Rod diameter Outside diameter
Axle size (mm) Inside diameter
Lo Free height
Ln Loaded height
Fn (N) Load at Ln in Newton
Image Productnr. Axle size Rod Diameter Du Lo t Ln Fn (N) Number of Waves material prognosed delivery time 65150 4.95 11.11 10.74 1.09 0.36 0.69 60.10 3 Music wire in consultation Order now
in consultation Axle size 4.95 Rod Diameter 11.11 Du 10.74
Stock
In stock interim sales reserved.
65240R 7.14 14.29 14.00 2.57 0.22 1.40 17.80 3 Stainless steel in consultation Order now
in consultation Axle size 7.14 Rod Diameter 14.29 Du 14.00
Stock
In stock interim sales reserved.
65260R 7.94 12.70 12.45 1.96 0.19 1.04 10.01 3 Stainless steel in consultation Order now
in consultation Axle size 7.94 Rod Diameter 12.70 Du 12.45
Stock
In stock interim sales reserved.
65270 7.94 12.70 12.45 1.57 0.28 0.89 20.00 3 Music wire in consultation Order now
in consultation Axle size 7.94 Rod Diameter 12.70 Du 12.45
Stock
In stock interim sales reserved.
65270R 7.94 12.70 12.45 1.57 0.28 0.89 20.00 3 Stainless steel in consultation Order now
in consultation Axle size 7.94 Rod Diameter 12.70 Du 12.45
Stock
In stock interim sales reserved.
65280R 7.94 15.88 15.54 2.87 0.23 1.52 20.00 3 Stainless steel in consultation Order now
in consultation Axle size 7.94 Rod Diameter 15.88 Du 15.54
Stock
In stock interim sales reserved.
65330 9.53 15.88 15.45 1.88 0.33 1.09 26.70 Music wire in consultation Order now
in consultation Axle size 9.53 Rod Diameter 15.88 Du 15.45
Stock
In stock interim sales reserved.
64980R 2.38 5.56 5.46 0.71 0.11 0.38 6.67 2 Stainless steel in consultation Order now
in consultation Axle size 2.38 Rod Diameter 5.56 Du 5.46
Stock
In stock interim sales reserved.
64990R 2.38 5.56 5.46 0.64 0.14 0.38 10.01 2 Stainless steel in consultation Order now
in consultation Axle size 2.38 Rod Diameter 5.56 Du 5.46
Stock
In stock interim sales reserved.
65000R 3.35 6.35 6.22 1.24 0.10 0.66 4.45 2 Stainless steel in consultation Order now
in consultation Axle size 3.35 Rod Diameter 6.35 Du 6.22
Stock
In stock interim sales reserved.
65010R 3.35 6.35 6.22 0.86 0.15 0.51 8.90 3 Stainless steel in consultation Order now
in consultation Axle size 3.35 Rod Diameter 6.35 Du 6.22
Stock
In stock interim sales reserved.
65015R 3.35 7.14 6.86 0.97 0.13 0.51 6.67 3 Stainless steel in consultation Order now
in consultation Axle size 3.35 Rod Diameter 7.14 Du 6.86
Stock
In stock interim sales reserved.
65019R 3.35 7.14 6.86 0.74 0.19 0.46 13.34 3 Stainless steel in consultation Order now
in consultation Axle size 3.35 Rod Diameter 7.14 Du 6.86
Stock
In stock interim sales reserved.
65020R 3.35 7.94 7.80 0.94 0.18 0.51 17.80 3 Stainless steel in consultation Order now
in consultation Axle size 3.35 Rod Diameter 7.94 Du 7.80
Stock
In stock interim sales reserved.
65030R 3.35 7.94 7.80 0.86 0.22 0.51 26.70 3 Stainless steel in consultation Order now
in consultation Axle size 3.35 Rod Diameter 7.94 Du 7.80
Stock
In stock interim sales reserved.
65040R 3.68 7.14 6.89 1.32 0.11 0.71 5.56 3 Stainless steel in consultation Order now
in consultation Axle size 3.68 Rod Diameter 7.14 Du 6.89
Stock
In stock interim sales reserved.
