Specifications

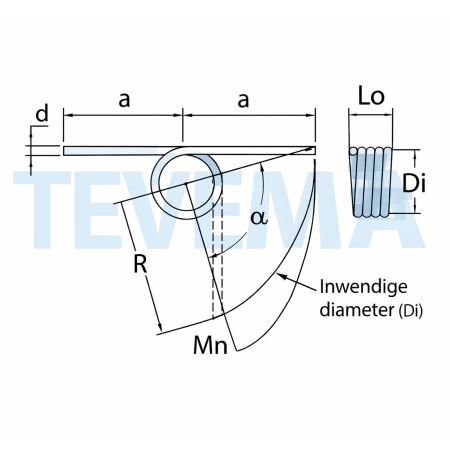

The listed diameters are in mm in fully flat position.
| SKU | TS103020L |
|---|---|
| Alternative number | 8496 |
| Price Group | GGG |
| Prognosed delivery time | in consultation |
| Material | Stainless steel |
| d - Wire diameter (mm) | 4.00 |
| Di - Innerdiameter (mm) | 45.00 |
| a - Leg length (mm) | 90.00 |
| L0 - Lenght (mm) | 16.00 |
| Nw - Number of turns | 3.00 |
| Mn - Max. Torgue (Nmm) | 6,710.00 |
| (L)eft or (R)ight | Left |
| C - Spring constant (Nmm/°) | 95.86 |
| α - Max. working angle (°) | 70.00 |
| Conform with | DIN 2088 / EN 13906-3 |
| As - Axle size (mm) | 40.00 |
| Position legs | A |
Alternative
Tip!
TS103020R
€6.28
