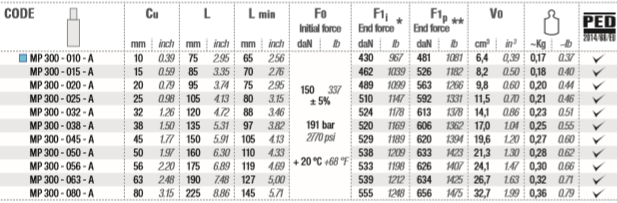

Specifications

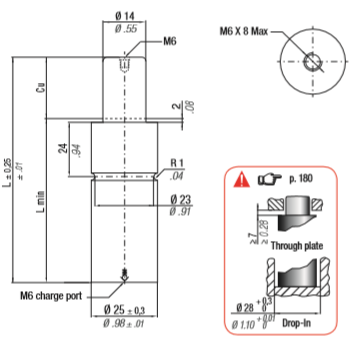

The listed diameters are in mm in fully flat position.
| SKU | MP 300 - 020 - A |
|---|---|
| Price Group | NF |
| prognosed delivery time | in consultation |
| F1p Ib | 1,266.00 |
| Outside Ø in inches | 0.98 |
| Outside Ø in mm | 25 |
| Ib | 674.00 |
| ~Kg | 0.20 |
| Vo cm^{3} | 9.80 |
| F1i daN | 489.00 |
| L min | 75.00 |
| F1p daN | 563.00 |
| F1i Ib | 1,099.00 |
| daN | 300.00 |
| Stroke | 20.00 |
| L | 95.00 |
