Specifications
The listed diameters are in mm in fully flat position.

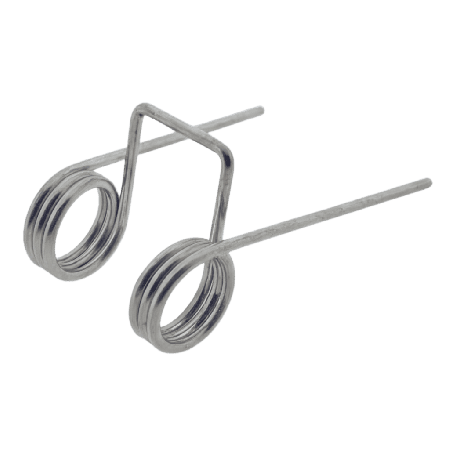

| SKU | DWT200760 |
|---|---|
| Price Group | OOO |
| Prognosed delivery time | in consultation |
| Material | Stainless steel |
| d - Wire diameter (mm) | 3.00 |
| Di - Innerdiameter (mm) | 23.00 |
| a - Leg length (mm) | 80.00 |
| L0 - Lenght (mm) | 50.00 |
| Nw - Number of turns | 2.75 |
| Mn - Max. Torgue (Nmm) | 5,828.00 |
| C - Spring constant (Nmm/°) | 121.42 |
| Width frame | 26.00 |
| b | 30.00 |
| α - Max. working angle (°) | 48.00 |
| Conform with | DIN 2088 / EN 13906-3 |
| As - Axle size (mm) | 20.00 |
| Position legs | D |
