Specifications
The listed diameters are in mm in fully flat position.

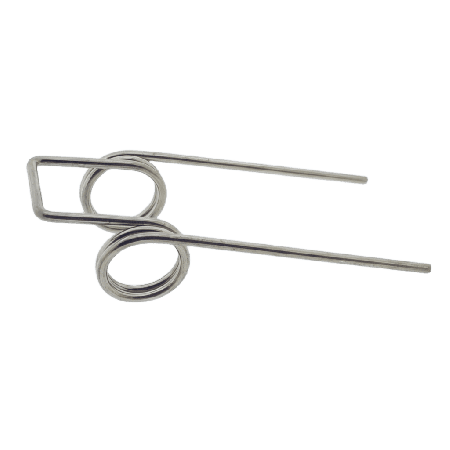

| SKU | DWT200590 |
|---|---|
| Alternative number | 8579 |
| Price Group | MMM |
| Prognosed delivery time | in consultation |
| Material | Stainless steel |
| d - Wire diameter (mm) | 2.00 |
| Di - Innerdiameter (mm) | 14.00 |
| a - Leg length (mm) | 60.00 |
| L0 - Lenght (mm) | 28.00 |
| Nw - Number of turns | 2.00 |
| Mn - Max. Torgue (Nmm) | 1,830.00 |
| C - Spring constant (Nmm/°) | 53.82 |
| Width frame | 16.00 |
| b | 18.00 |
| α - Max. working angle (°) | 34.00 |
| Conform with | DIN 2088 / EN 13906-3 |
| As - Axle size (mm) | 12.00 |
| Position legs | A |
