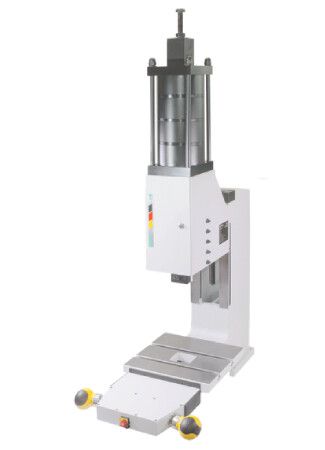

60 kN KHKP Tevema

Specifications

Les diamètres indiqués sont en mm en position totalement plate.

SKU	60 kN KHKP
Price Group	aanvraag
délai de livraison prévu	en consultation
Guide Type de moyen protégé contre la rotation	Door strips aan te passen
Geleidertype beveiligd tegen rotatie	Prismagids
Position du levier manuel	360 ° links en rechts instelbaar
gereedschapsklemmen	Afneembare klem
locatie gat	Ø 25 H7
In hoogte verstelbaar	115.00
Projectie	200
Max. Perskracht in de UT	60 kN
~Kg	209.00
Course	0 mm - 60 mm
Couleur	RAL 7035

Product description

Specs

Press type	Manual toggle press
Operation	Manually
Overhang	200 mm
Installation height adjustable	115 mm - 370 mm
Stroke length	0 mm - 60 mm
Force generation	Pneumatic cylinder - Toggle lever
Operating pressure	6 bar
Location bore	Ø 25 H7
Clamped piece	Removable clamped piece
Twist-free guide	Prism guide
Guide play-free adjustable	By adjustment gib
Height adjustment guide unit	Ratchet
Fastening guide unit per screw	170 Nm
Connection hose	1/2''
Two-Hand safety control ES07	Optional
Two-Hand safety control ZS07	Optional
Two-Hand safety control Spice Flex	Optional
Pressing force	60 kN
Standard color	RAL 7035
Weight	209 kg
